Understanding Ball Screw Preload: What You Need To Know

The precision and efficiency of modern machinery heavily rely on the quality and functionality of its components, particularly in applications that require accurate motion control. Among these, ball screw systems are popular for their ability to convert rotational motion into linear movement with remarkable accuracy and minimal friction.

Understanding preload is essential to ensuring the reliability, efficiency, and longevity of ball screw systems, particularly in industrial and manufacturing settings. Preloading refers to the intentional application of a specific load to a ball screw, aiming to eliminate backlash, enhance rigidity, and improve overall system accuracy.

It’s a critical aspect of design and engineering that balances functionality and service life. Whether designing machinery or maintaining systems in a production environment, fully understanding ball screw preload will help you ensure better performance and prevents equipment failure over time.

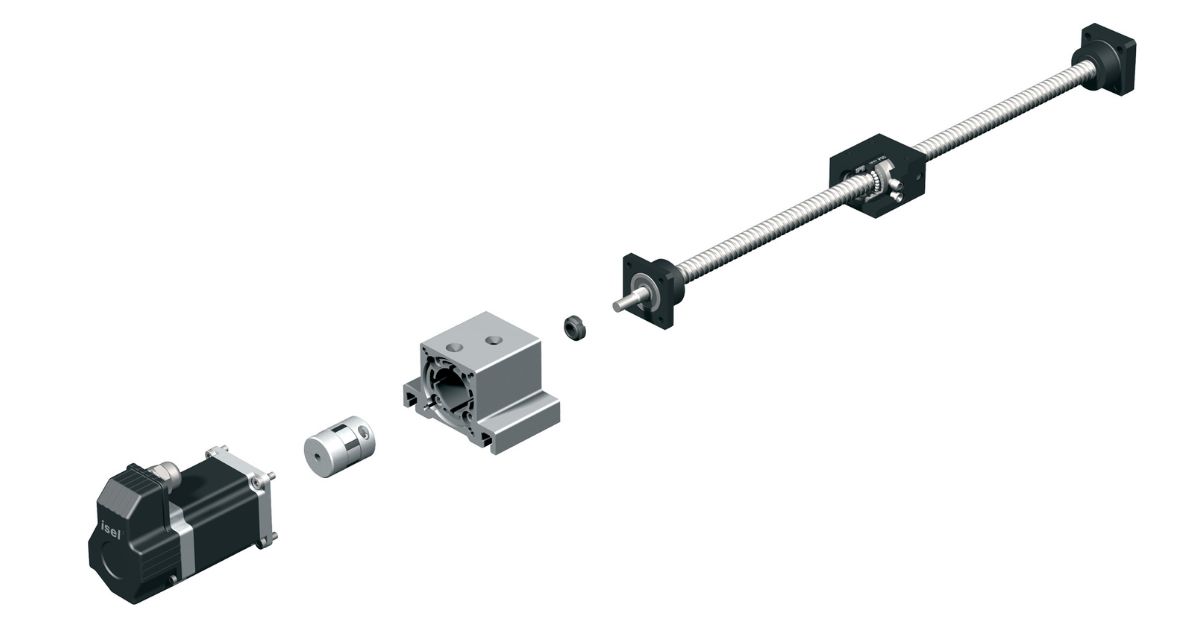

What Is Ball Screw Preload?

Ball screw preload involves applying a calculated axial load within the ball screw assembly to ensure tighter engagement between the ball bearings and the raceways of the screw and nut. This process eliminate backlash, which is the unwanted movement or play that can develop due to gaps or misalignments between the threads of the screw and nut.

Backlash can negatively impact the precision, repeatability, and rigidity required for many applications. By preloading the ball screw, engineers can improve the system's stiffness, minimize positioning errors, and enhance its overall performance. Preload is possible during the manufacturing process by incorporating oversized ball bearings or utilizing a double nut design, or during assembly to suit specific operational requirements.

The Role of Preload in Enhancing Rigidity

Rigidity is essential for precision machinery, and the application of preload significantly contributes to improving structural stiffness in ball screw systems. By enhancing resistance to bending and vibration, preload improves the durability and reliability of the system, while also ensuring smoother operation and greater control.

This makes preload a critical factor for precision-demanding applications like CNC machines, robotics, and aerospace systems, where even the slightest deviation can result in suboptimal performance. Preload bolsters the mechanical integrity and the overall functionality of such high-performance systems.

Types of Ball Screw Preload

There are various methods for achieving preload, each tailored to specific applications and requirements. Below is an extended explanation of the most common ones.

Double-Nut Preload

This method uses two separate nuts, installed on the same screw with a small axial offset. You achieve the preload by applying a compressive force between the nuts, typically with a spring or spacer.

• Advantages: Highly effective at eliminating backlash and provides excellent rigidity.
• Limitations: More complex and expensive to manufacture and assemble.

Offset Preload

The raceways of the screw and nut create a deliberate misalignment. This ensures the balls remain under compressive force, providing consistent preload.

• Advantages: Simple to implement and does not require additional components like double nuts.
• Limitations: Requires high precision in machining and may be less resistant to wear.

Oversized Ball Preload

Larger ball bearings slightly exceeding the size of the gap between the thread grooves to create preload. The oversized balls exert a tight interference fit within the assembly.

• Advantages: Effective in reducing backlash without additional structural complexity.
• Limitations: Increased friction may result in higher wear and increased energy consumption.

Stretching Method Preload

This technique involves physically stretching the ball screw shaft to create tension, which in turn applies compressive preload to the nut.

• Advantages: Can achieve very high preload forces, suitable for heavy-duty applications.
• Limitations: Requires additional design considerations to account for thermal expansion and tension-release effects.

Spring Preload

Springs apply axial force between components, maintaining preload. This method is most effective with part of a double-nut configuration.

• Advantages: Flexible and maintains preload even with wear or thermal expansion.
• Limitations: May introduce a slight loss in rigidity compared to fixed preload methods.

Integral Preload Design

Combines precision machining and assembly to create a preload during the manufacturing process.

• Advantages: Simplifies assembly and eliminates the need for additional mechanisms.
• Limitations: Limited adjustability once manufactured, requiring precise initial calculations and machining.

Applications Where Preload Is Essential

Preload is often necessary in high-precision and high-speed applications, where even slight mechanical deviations can result in significant errors or inconsistencies. These applications require smooth, accurate, and repeatable linear motion, making preload a necessity. Some examples include:

• CNC machining centers
• Robotic arms
• Semiconductor manufacturing systems
• Medical imaging equipment
• Aerospace navigation systems

Risks and Trade-Offs of Applying Preload

Applying preload in mechanical systems comes with a range of potential risks and trade-offs. Excessive preload can lead to higher friction due to increased contact pressure, resulting in greater energy losses and decreased efficiency. This added friction can also accelerate wear on components, such as ball bearings and raceways, significantly reducing their operational lifespan.

Insufficient preload can cause vibration, noise, and reduced structural rigidity, potentially compromising performance and longevity. Achieving the correct level of preload is a delicate balance that requires precise calculation and continuous monitoring to minimize risks and ensure optimal performance in demanding applications.

How To Calculate Preload for Ball Screws

Calculating the preload for ball screws requires evaluating multiple operational factors to ensure precision and efficiency in the application. Engineers must consider the necessary stiffness of the screw, the anticipated loads it will bear, the operating speeds, and the impact of varying thermal conditions on the system.

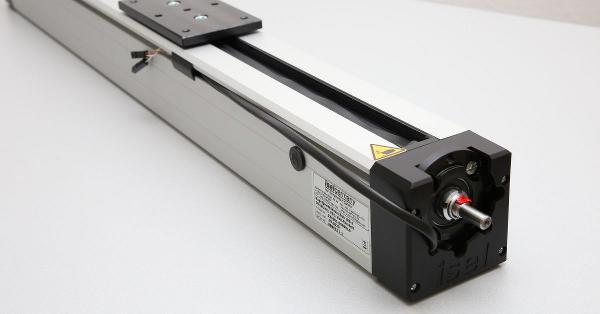

These factors work together to determine the appropriate preload value that can enhance performance while minimizing wear and tear. Manufacturers typically provide detailed formulas and guidelines tailored to specific designs, enabling informed calculations. By selecting a reliable linear ball screw actuator and carefully balancing these variables during the design phase, engineers can ensure longevity and functionality, resulting in accurate motion control.

The Importance of Maintenance in Preloaded Systems

Regular inspections help identify and address issues such as preload degradation, which can negatively impact system accuracy, and ensure lubrication levels are sufficient to reduce friction and mitigate wear. Monitoring for signs of overheating or material fatigue is important because these indicate underlying problems that may compromise the system's functionality over time.

By implementing a consistent maintenance schedule, you can significantly extend the lifespan of preloaded systems, minimize downtime, and maintain the high precision required in various applications. Proper maintenance preserves the integrity of the system, contributing to its efficiency and overall reliability.

Understanding ball screw preload is essential for anyone working with precision motion control systems. From minimizing backlash to enhancing durability, preload serves as a foundation for reliable and efficient machinery. By utilizing a linear ball screw actuator with appropriate preload characteristics, engineers and operators can ensure optimal performance in even the most demanding applications. Whether designing, maintaining, or using these systems, knowing the intricacies of preload will enable better decision-making and robust results.
