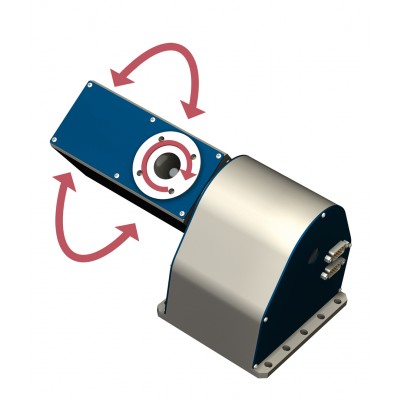

ZDS 2030 Dual Axis Rotary Stage
The ZDS 2030 is a stepper motor driven dual axis rotary stage. I
t can be fitted with a 3 jaw chuck or SK20 collet holder or custom fitted as required
(click on image to enlarge)
See below, select QTY and click ADD TO QUOTE
t can be fitted with a 3 jaw chuck or SK20 collet holder or custom fitted as required
- Tilt axis can rotate ±139°
- Swivel axis can rotate infinite amount in either direction
- Non-contact limit switches on both axes
- Available accessories include 3 jaw chucks - 65mm diameter, 80mm diameter and 125mm diameter and ER20 collet holder
- 30:1 ratio on tilt axis
- 20:1 ratio on swivel axis
- NEMA 17 stepper motor on both axes
- For catalog pages (including ZD30 and ZR20) - click here
- For SOLID MODEL - click here
| View Accessories | Select parts and ADD TO QUOTE |
Dimensioned Drawing |
(click on image to enlarge)
| View Accessories | Select parts and ADD TO QUOTE |
Dimensioned Drawing |
| ZDS 2030 Accessories | |
 |
 |
| 3 jaw chuck, 65mm dia. | 3 jaw chuck, 80mm dia. |
 |
 |
| SK20 collet holder accepts ER20 collets | 3 jaw chuck, 125mm dia. |
