LEZ 1 Cantilever XY

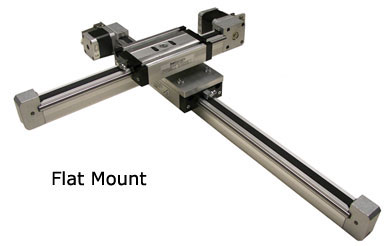

  • LEZ 1 Flat mount Cantilever XY

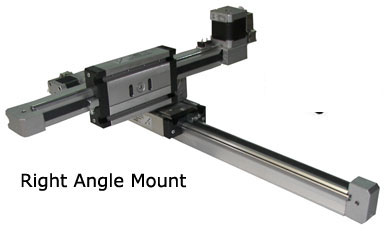

  • LEZ 1 Right Angle Mount Cantilever XY
Click image to enlarge
LEZ 1 Cantilever XY configurations can be used for long X axis and short Y axis travels
  • We recommend up to 448 Y travel, depending on the weight being moved
  • X  travel up 3m is available
  • Y axis can be either flat or at right angle mount
  • Available as a turnkey system with cable carrier and extrusion base
  • Available with stepper or servo motors or NEMA 23 motor mount
  • Available as XYZ as well
