Side Enclosure Profiles

  • Side Enclosure Profile Application

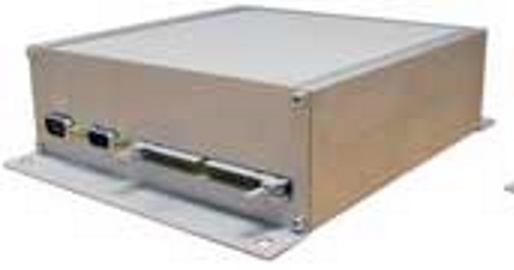

  • Side Enclosure Box Example

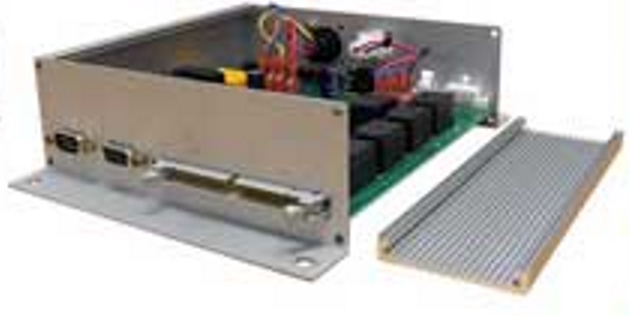

  • Opening a Side Extrusion Enclosure

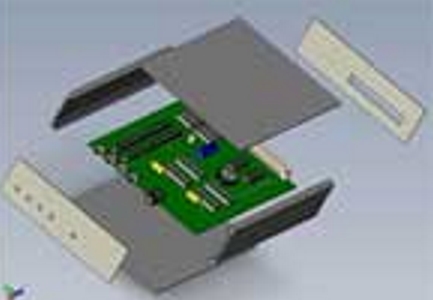

  • Exploded View of Side Extrusion Enclosure
Click image to enlarge
  • These extrusions make up 2 parallel sides of customized enclosure
  • Stamdard sheet stock of thickness 1.6mm or 1/16" make up the other 2 sides
  • A full enclosure requires a front and rear panel to hold enclosure together
  • The length is controlled by the length of the extrusion - up to 3m long.
  • Available in standard lengths of 1, 2 and 3m with custom cuts available.
  • A built in card guide is designed to hold 1.6mm or 1/16" thick circuit boards with Eurocard widths of 100 mm.and any length
  • The 42mm side profile can accomodate 1/16" or 3/32" thick circuit boards
  • The 56mm side profile can accomodate 1/16" thick circuit boards
  • Corner "cross" is designed for M3 tap or M3 self-tapping screw
  • The enclosure is held together by the face plates which are screwed to the corners with M3 screws.
  • Access for repairs or assembly is very easy - just remove front or rear panel and slide out the top or bottom
  • The aluminum extrusion sides have a natural cooling effect
42x10mm Side Enclosure Extrusion Profile Dimensions

42x10 mm Side Enclosure Extrusion Profile

56x10mm Side Enclosure Extrusion Profile Dimensions

56x10 mm Side Enclosure Extrusion Profile
