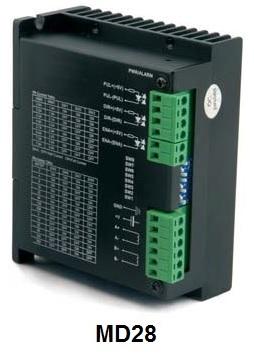

MD 28 Stepper Motor Microstep Driver
[316304]

Request for Quote

Application Assistance

•

Click image to enlarge

• For 2 or 4 phase hybrid step motors
• MD 28 2.8 to 7.8 amp / phase
• Max supply voltage MD 28-80 VDC
• MD 28 is 119 x 97 x 48mm
• Ambient Temp 0°c - 50°c, Max 70°c
• Takes pulse, direction & enable signals
• Standby current can be set to full or 50%
• Current is dip switch selectable
• Resolution is dip switch selectable between 2 and 200 microsteps/step
  • This is 40,000 microsteps/rev on a standard 200 step/rev stepper motor

Quantity

Add to Quote

Specifications

• Current: 2.8-7.8 A/phase
