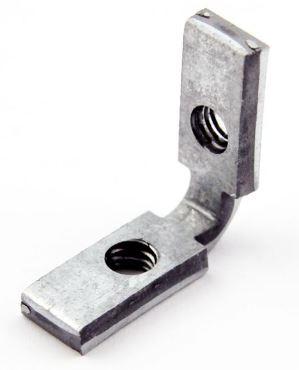

L Double M6 T nut
[209021 0003]

Click image to enlarge
Bag of 25 "L" shaped T Nuts
2 x M6 threads, one on each arm
25mm L x 10mm W x 3.5mm T
Will fit in LES ball screw slides and LEZ belt drive slides T Slots
Can be used to lock 2 profiles together at right angles

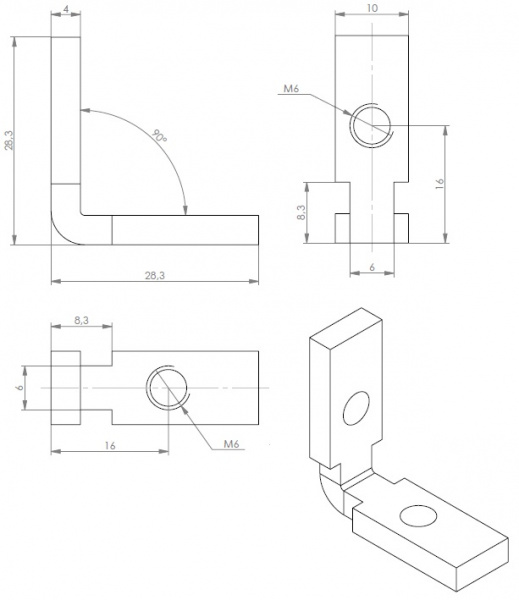

M6 L Double T nut dimensions
