M6 Oval Double T Nut
[209002 0004]

Click image to enlarge

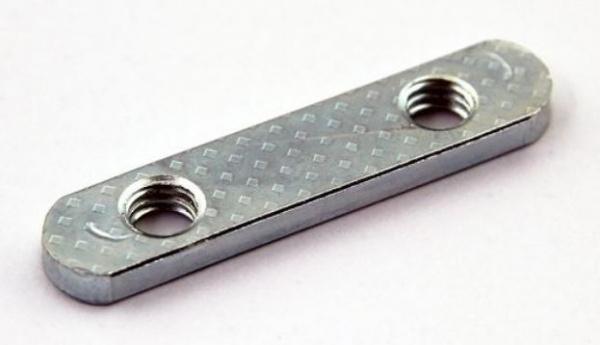

Bag of 20 oval DOUBLE T Nuts
2 x M6 thread, 25mm apart
45mm L x 10mm W x 3.5mm T
Will fit in LES ball screw slides and LEZ belt drive slides T Slots
This T nut is ideal for using 1 thread to lock the nut into a fixed position and then to use the other thread to fasten fixtures or brackets to.

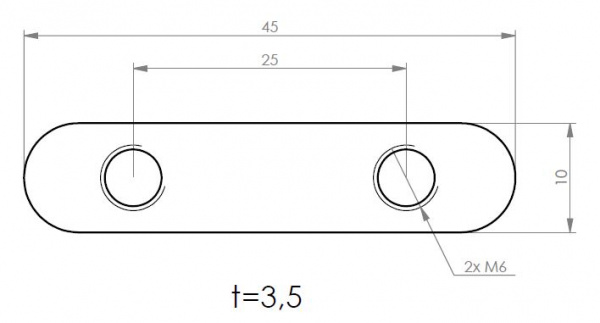

M6 Oval Double T Nut Dimensions
