PS140 Aluminum Profile

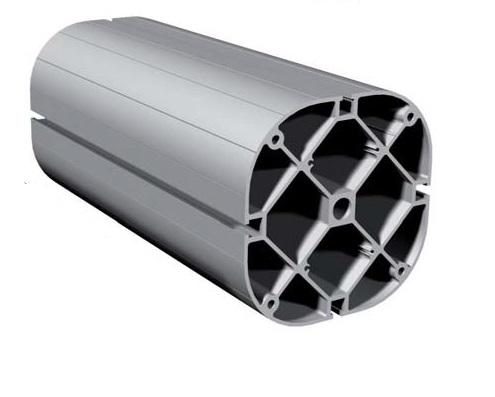

  • PS 140 Aluminum Profile

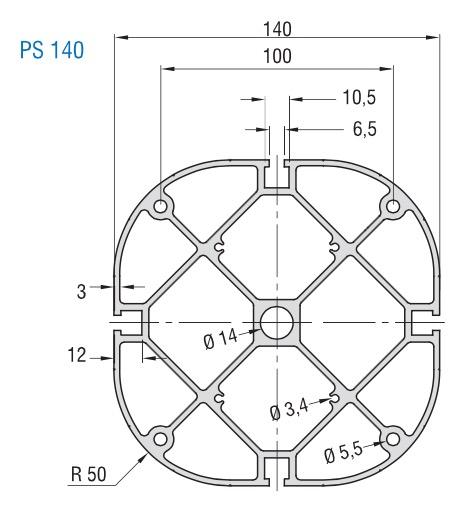

  • PS 140 Aluminum Profile Drawing
Click image to enlarge
Aluminum extrusion profile for the construction of partition walls, free standing columns, and tables. Compact, stable, and fashionable.

Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
Add To Quote
  • Aluminum clear anodized
  • Produced to Din EN 12020-2
  • Light, compact and stable
  • Available up to 3 m length
  • T-slots are provided on each side of profile
  • T-slots are designed to use M6 nut or M6 nut strip
  • Option - Power Coatings
Stand Profiiles PS 140
  PS 140
Dimensions (W × H)  140 x 140 mm
Length  up to 3 metres (special lengths to order)
Weight  appr. 9.2 kg/m
   4 T-key inserts for M6 sliding nuts4 cavity inserts, Ø 5.5 mm for M6 4 cavity inserts, Ø 3.4 mm for M4 Cavity insert, Ø 4 mm for M16
Moment of inertia Ix  601.80 cm4
Moment of inertia Iy  598.11 cm4
Moment of resistance Wx  85.97 cm3
Moment of resistance Wy  85.44 cm3
