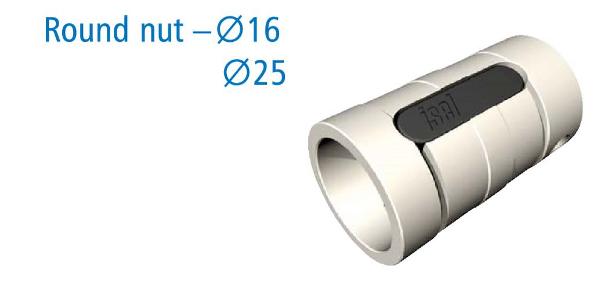

Series KM - 16mm Diameter Ball Nut
Series KM - 16mm Diameter Ball Nut
Patented adjustable anti-backlash design
(when used with required mounting blocks)
Made of steel, repeatability of < 0.01 mm
Accuracy of < 0.1 mm. Wipers avail.
Flange or base mounting options
Click here for CAD models
Patented adjustable anti-backlash design
(when used with required mounting blocks)
Made of steel, repeatability of < 0.01 mm
Accuracy of < 0.1 mm. Wipers avail.
Flange or base mounting options
Click here for CAD models
Configure Your Part
Select Options then Click “Add to Quote”
Part Number:
|
| Add To Quote |
| Ball Screw Nuts | ||||||

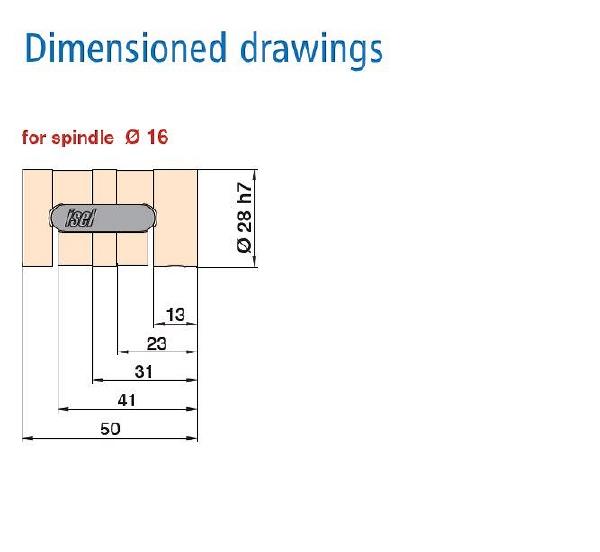

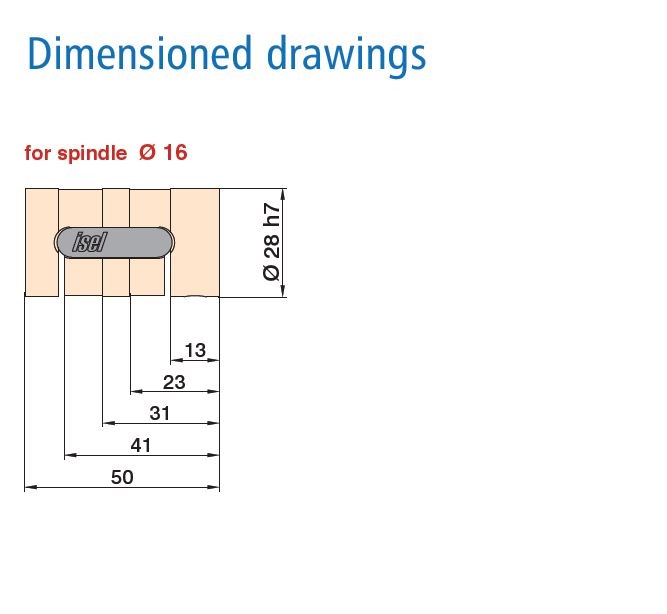

| Ø | Item-No. | spindle pitch | D | L | dynamic load [N] | static load [N] |
| 16 | 213503 | 2.5 | 28 | 50 | 3,500 | 5,500 |
| 213514 | 4 | 28 | 50 | 4,600 | 7,200 | |
| 213505 | 5 | 28 | 50 | 4,600 | 7,200 | |
| 213510 | 10 | 28 | 50 | 4,200 | 6,500 | |
| 213520 | 20 | 28 | 50 | 2,500 | 1,900 | |
