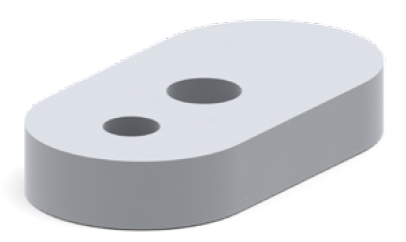

Oval T Nut with Set Point
[209001 0017]

Request for Quote

Application Assistance

Click image to enlarge

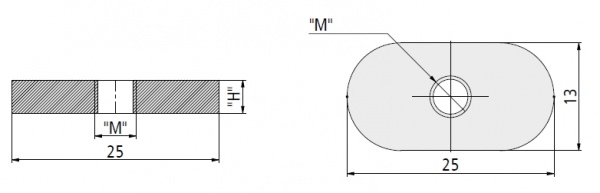

"M" Thread	#/Pack	"H" (mm)	Part Number
M4	20	4	209001 0017

Quantity

Features

Zinc plated steel
Can be used on PT, RE and PR table plates
M4 set screw for fixing T nut position included

Specifications

"M" Thread: M4
"H" (mm): 3
Package Size: 20
Nut Type: Oval Nut with Set Point
