PR 25 Table Plates

  • PR 25 Table Plate Extrusions

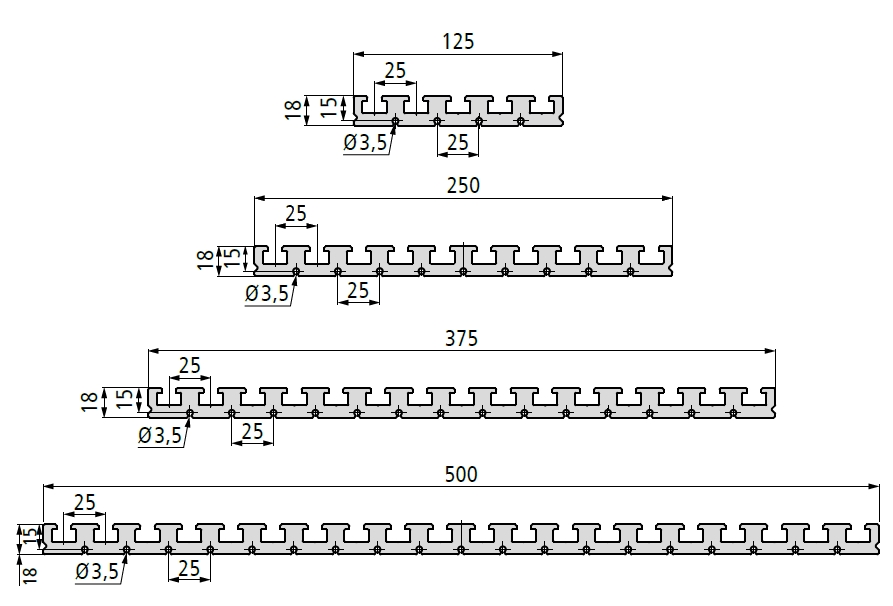

  • PR 25 Extrusion Table Plate Dimensions
  • PR T Slot Detailed Dimensions
Click image to enlarge

WE HAVE A LIMITED NUMBER OF 18x500 about 450 and 250mm long plates in stock.
450mm plates - List $300 each, now $150.00 - WHILE THEY LAST!
250mm plates - List $160 each, now $75.00 - WHILE THEY LAST!
CALL 516-595-7495

All other widths of PR 25 are discontinued
For alternatives, please look at the PT25 Table Plates for similar products

  • Heavy duty solid profile makes it ideal for fixturing
  • Hollows on the bottom of the extrusion can be tapped for M5 or M6 threads
  • Precision extruded for flatness
For price quote, click here
Click here for Accessories and Clamping Devices for PR 25 Extrusions

Size and Physical Properties of PR 25 Extrusions

  Size
(mm)
kg/m Moment
of
Inertia
Ix (cm4)
Moment
of
Inertia
Iy (cm4)

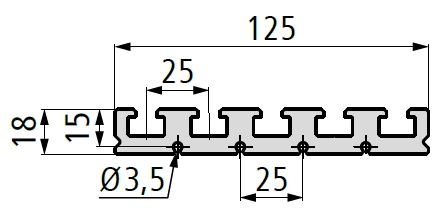

Aluminum Extrusion Table Plate 18x125                  DISCONTINUED 18x125 4.1 4.28 198.03

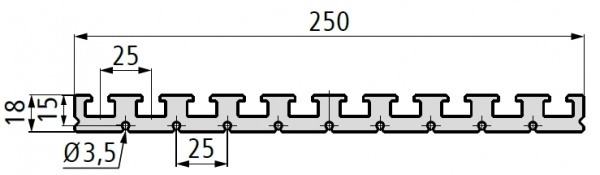

Aluminum extrusion table plate 18x250mm     DISCONTINUED 18x250 8.2 8.55 1573.62
Aluminum extrusion table plate 18x375mm 18x500 17.1 17.1 12570.00

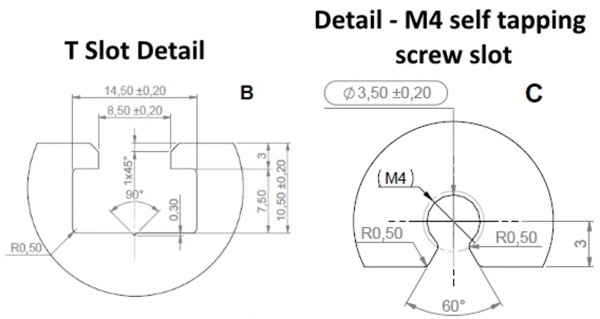

PR T Slot Detailed Dimensions
Accessories and Clamping Devices for PR 25 Extrusions
Cam Lock Clamp Click here for clamping and fixturing accessories.
Heavy Duty T Nut Click here for T nuts for these extrusions.
Angle Brackets Click here for Angle Brackets

Select size and length, then click ADD TO QUOTE
